TEST EQUIPMENT & GENERAL MEASURING INSTRUMENTS

 Publication

 Reference Article

 Board Price

Eletromics—Lab.com Simple LC Meter Version 2, $5.00 (Click here)

$5.00


PULSE TUNING FOR SSB (PECKER) BY AG6K

$4.50

VK3BHB LCM METER BOARD PROGRAMMED PIC $10.00

$5.00

Mr Carlsons Lab (www.patreon.com) capacitortest proect PC

6.00


HP141T SPECTRUMANALYZER to PC INTERFACE (CLICK HERE)

$5.00

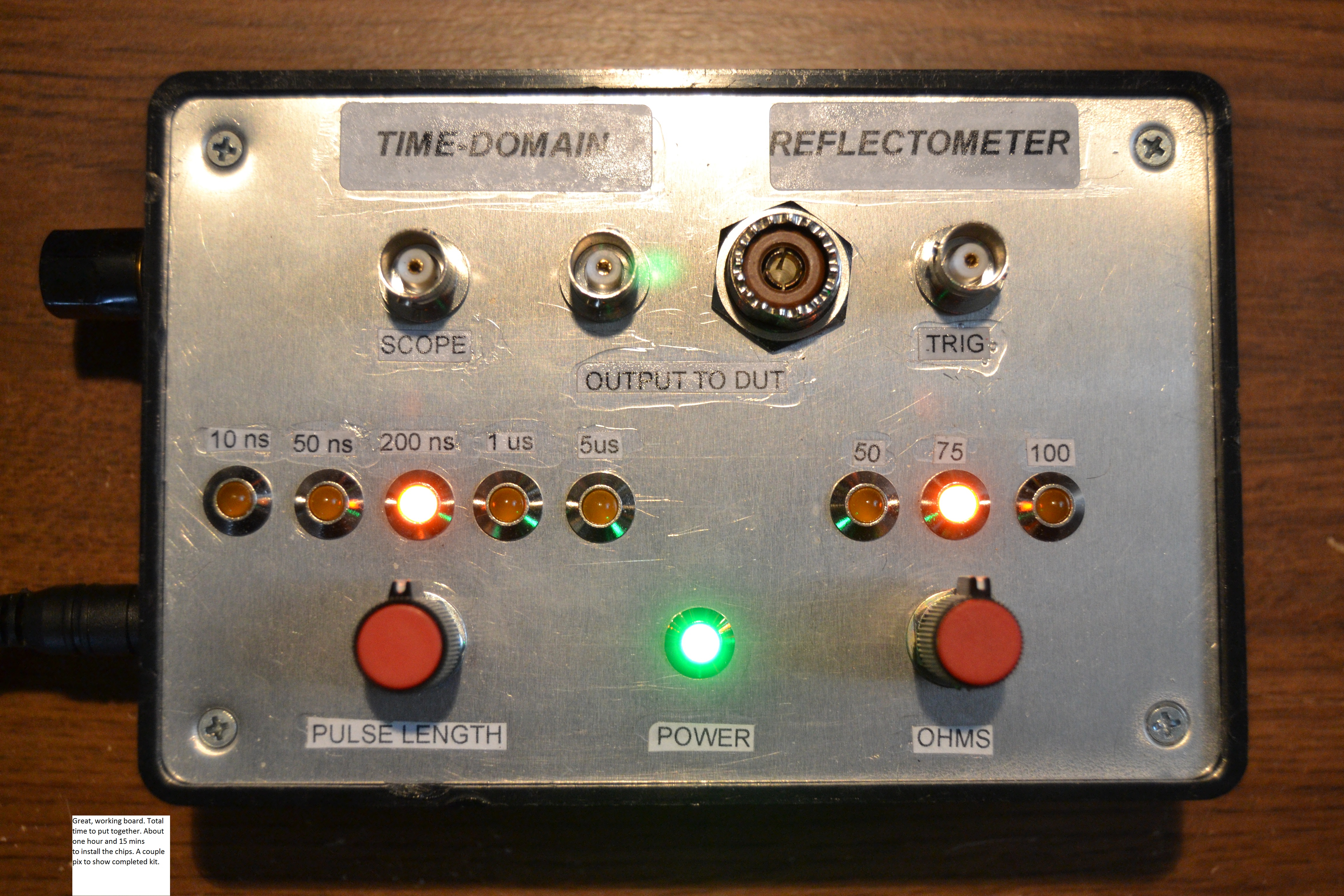

TOMI ENGDAHI TIME DOMAIN REFLECTOMETER KIT SEE BOARD (CLICK HERE) DETAILS AT WWW.EPANORAMANET/CIECUITS/DTR/HTML (PICTURE 1) (PICTURE 2) ( documentation)

$10.00


RJ45 TO RJ45 BREAD BOARD KIT, INCLUDED PC BOARD AND THE TWO RJ45 JACKS (CLICK HERE)

$10.00

73's Nov00

ADD ON DIGITAL VOLTMETER BY JAMES ELKINS (Two Board Set)

$7.00 per set

73's Jan00

JUNK BOX AUDIO TEST GENERATOR BY SELLEN

$8.00

73's Dec97

HAM TO HAM COLUMN BY DAVE MILLER "BEEPER SHOUT DETECTIVE"

$5.25

73's Dec95

MILLIOHM ADAPTER FOR DMM BY KITCHENS

$4.50

73's Nov95

GENERAL PURPOSE WIDE BAND AMP 50HZ TO 100 MHZ BY MILLER

$4.50

73's Aug95

SIMPLE PRECISION VOLTAGE STANDARD USING AD586 IC BY KITCHENS

$7.75

73's Jul94

CONSUGAR DELAY VIDEO TRIGGER FOR OSCILLOSCOPE

$5.25

73's Jul93

DIRECT READING L METER

$5.25

73's Jul93

DELUXE FUNCTION GENERATOR BY CRIPE

$5.50

73's Jul93

ATV COLUMN GRAY SCALE GENERATOR

$4.50

73's Aug93

FM PACKET DEVIATION METER

$4.50

73's May92

QRP EXPANDED LED READOUT VOLTMETER

$9.00

73's Mar92

PULSED CRYSTAL SOURCE

$4.50

73's Feb92

NE-602 RF SIGNAL GENERATOR

$5.50

73's Jan92

IMPROVED CRYSTAL TESTER WITH POWER SUPPLY BD (2 BD SET)

$7.00

73's Jan92

FUNCTION GENERATOR

$7.25

73's Jan92

DIRECT READING INDUCTANCE METER

$3.50

73's May91

HANDY INDUCTANCE BRIDGE

$4.50

73's Sep90

THE COIL TESTER

$4.50

73's Feb90

SPECTRUM ANALYZER (TO CONVERT SCOPE)

$4.50

73's Nov88

ALL ABOUT HENRY

$5.25

73's Dec83

MAKE A GOOD L METER BETTER

$7.00

ARRL W1FB QRP NOTEBOOK 1991 FIG 4-19

GENERAL PURPOSE AMP

$11.00

ARRL HBK 1995 CHP 25

LOW POWER STEP ATTENUATOR

$9.00

ARRL HB CHP25 FIG.51 (88-91)



A B TWO TONE GENERATOR (AND CHP25 FIG.39 (> 93))

same circuits as in 2015 Handbook chp 25 page 41

$7.00

ARRL HB (1988 ONLY) CHP25 FIG.43

DUAL GATE MOSFET DIPMETER

$4.00

ARRL HBCHP 25.17

DIP METER WITH DIGITAL DISPLAY QEX Oct93 TWO BOARD SET

$18.00

ARRL HB CHP25 FIG.18

A DIGITAL IC MULTIMETER (QST Aug82)

$12.00

ARRL HB (1988 ONLY) CHP25 FIG.18

AN IC VOLTMETER (QST Jan82)

$4.00

ARRL HB CHP25 FIG.45

SIMPLE INDUCTANCE METER

$7.00

ARRL HB 88-90 CHP29 FIG.15

AN RS232-C BREAKOUT BOX (CHP29 FIG.21)

$21.50

ARRL HB 26

MEASURING L AND C WITH DVM SEPARATE BOARD FOR L AND C PRICE EACH

$5.50

CIRCUIT CELLAR 10/04

SINGLE BOARD LOGIC ANALYZER BY CICCHINELLI

$12.00

CQ Apr97

MULTI-PURPOSE BROADBAND AMPLIFIER FOR 1 TO 50 MHZ AND 1 WATT AMP BOARD (SET OF TWO BOARDS)

$8.00

NUTS AND VOLTS AUG08

AUDIO SPECTRUM SPECTRUM ANALYZER BY CICCHINELLI THREE BOARD SET.

419.00

NUTS AND VOLTS OCT'07

NUTS AND VOLTS OCT '07, ANALOG MIXED AND MATCHED, A FOUR INPUT/OUTPUT DISTRIBUTION AMPLIFIER BY CICCHINELLI, THREE BOARD SET

$18.00

HR May89

MICROFARAD COUNTER

$3.00

HR Jul89

50 MHZ RF BRIDGE

$5.50

HR Jul89

SIMPLE RF VOLTMETER

$6.75

NEDA JOURNAL

G0JVU DEVIATION UNIT FAX X1 VERSION 2.0 PC BOARD

$7.00

PE Feb90

AUDIO SWEEP/ BURST GENERATOR

$9.00

POPTRONICS Jul01

IN-CIRCUIT CAPACITANCE TESTER BY SMITH

$5.50

QEX MAY 2017

Improve Perforance for Octopus V/I Curve Tracer 2 bd set $8.00 (view here)

$8.00

QEX 11/10

RF Phase Meter " Nov 2010 - QEX (Pg. 25) Two board set

$12.00

QEX 9/10

2013 ESR METER BOARD BY W0PCE $5.50

$5.50

QEX OCT/NOV '13

FREQ. DEPENDENCE SERIES ESR MEASUREMENT bY W0PCE

$5.50

QEX JUL/AUG 12

A LINEAR SCALE MILLIOHM ESR METER BY WHITESIDE

$7.00

QEX NOV/DEC '07

SAN2PC: SPECTRUM ANALYZER TO PC INTERFACE BY F2DC PC BOARD AND PROGRAMMED PIC AND MAX232 ICs SEE http://roland.cordesses.free.fr/san2pc.html

$19.50

QEX Jul/Aug03

A PC-BASED DIGITAL STORAGE OSCILLOSCOPE AND LOGIC ANALYZER BY K3PTO (5 BOARD SET)

$41.00 set

QEX Sep/Oct01

BUILD A SIMPLE HIGH RESOLUTION DC VOLTMETER BY TIPTON only one board left

$15.50

QEX Jan/Feb00

HAGEMAN 250 mhz SIGNAL GENERATOR, 5 BOARD SET http://www.geocities.com/hagtronics/source/index.html

DISCONTINUED


QEX Jul95

TERMINATION IN-SENSITIVITY AMPLIFIER 2-100MHZ, 9.5 DB GAIN

$6.50

QST MAY 2021

TIME DOMAIN REFLECTOMETER BY W0SJ, $5.50 FOR THE BOARD, OR $12.00 FOR BOARD AND PATYS FOR THE BOARD.

(VIEW BOARD)

$5.50/ $12.00

QST MAR 15

TALKING FREQUENCY COUNTER (CLICK HERE)

QST APR 14

ESR METER (CLICK HERE FOR MODIFIED SCHEMATIC) (CLICK HERE FOR PC BOARD LAYOUT)

$6.00

QST JUN 12

SPICE BOTTLE LOGIC PROBE BY BLOOM DISCONNUED

$7.00

QST JAN12

TRANSISTOR TESTOR BY ALAN BLOOM (CLICK HERE)

$5.00

QST Nov. 2011

FOUR TONE SSB TEST GENERATOR by AK4AA MINI KIT CLICK FOR DETAILS

$15.00

QST Nov. 2011

INTERNAL FULL BREAK-IN KEYING INTERFACE FOR THE ALS-600 AMPLIFIER BY AD5X , KIT OF PARTS AND P C BOARD details click here

$12.00

QST NOV '10

EXPANDED SCALE VOLTEMETER FOR 120 OR 240 VAC BY K1SG, CLICK HERE FOR PICTURE OF BOARD

$4.50

QST NOV05

LOW COST DDS FUNCTION GENERATOR BY RICHARDSON



$7.50

QST May03

MODERN GDO GATE DIP OSCILLATOR BY N1AL

$4.50

QST Sep01

THE DIGITAL METER SUPPLY BY MIKE BRYCE

$6.50

QST Mar00

A SIMPLE METER TESTER BY STANLEY

$4.50

QST Dec99

A PSK31 TUNING AID BY DON URBYTES

$6.50

QST Nov98

CHANNEL WATCH, MULTIPLE-FREQUENCY ACTIVITY MONITOR BY JOHN HANSEN

$7.00

QST Oct98

PIC PROGRAMMER BY HANSEN

$4.50

QST Jan/Feb98

BUILD YOUR OWN NETWORK ANALYZER BY STEVE HAGEMAN. 4 BOARD SET Check http://www.sonic.net/~shageman/ for latest project updates

$23.00

QST Mar97

A RELATIVE-INDICATION AUDIBLE METER READER BY McCLOSKEY

$4.50

QST NOV 93

TWO TONE GENERATOR USING TWO TRANSISTOR OSCILLATORS NO LONGER AVAILABLE

QST May94

NOISE SOURCE BY SABIN (.5 TO 500 MHZ OR 1MHZ TO 2.5 GHZ)

$4.25

QST Apr94

FUNCTION GENERATOR WITH FREQ COUNTER AND READOUT (2 BD SET)

$17.50

QST Aug93

DUAL RANGE AC VOLTAGE, CURRENT, FREQ MONITOR

$9.00

QST May93

EXPANDED RANGE AC/ DC VOLTMETER (BOARD ONLY)

$4.00

QST May93

EXPANDED RANGE AC/ DC VOLTMETER (BOARD AND MC3423P)

$7.50

QST Dec92

EXPANDED RANGE ANALOG VOLTMETER

$4.50

QST Jan90

CRYSTAL TESTER FOR F, Q, AND R BY W1FB

$7.00

QST Jun89

MULTIPURPOSE INSTRUMENTATION AMP/TESTER

$12.50

QST Dec87

RX NOISE BRIDGE (ARRL HB CHP25 FIG.74) (ALSO FIG.65.2)

$5.75

QST Sep86

CAPACITOR METER

$4.50

QST Aug82

DIGITAL IC VOLTMETER (ARRL HB CHP25 FIG.18)

$12.00


3.5 DIGIT DVM BY PETER KEIRLE (2 BOARD SET)

$8.00

RADIO FUN MAGAZINE Apr92

VOLTSENTRY

$5.50


N0SS BROAD BAND HF NOISE GENERATOR FOR FILTER ALIGNMENT SEE AT http://home.earthlink.net/~n0ss/noise_source.pdf

$4.50


LOGIC ANALYZER BY L CICCHINELLI K3PTO SEE www.qsl.net\K3PTO

$12.00


N0SS CW ZERO BEAT DETECTOR WITH LED INDICATION SEE AT http://home.earthlink.net/~n0ss/kr5l_cw_tuning_ind.pdf

$4.50
